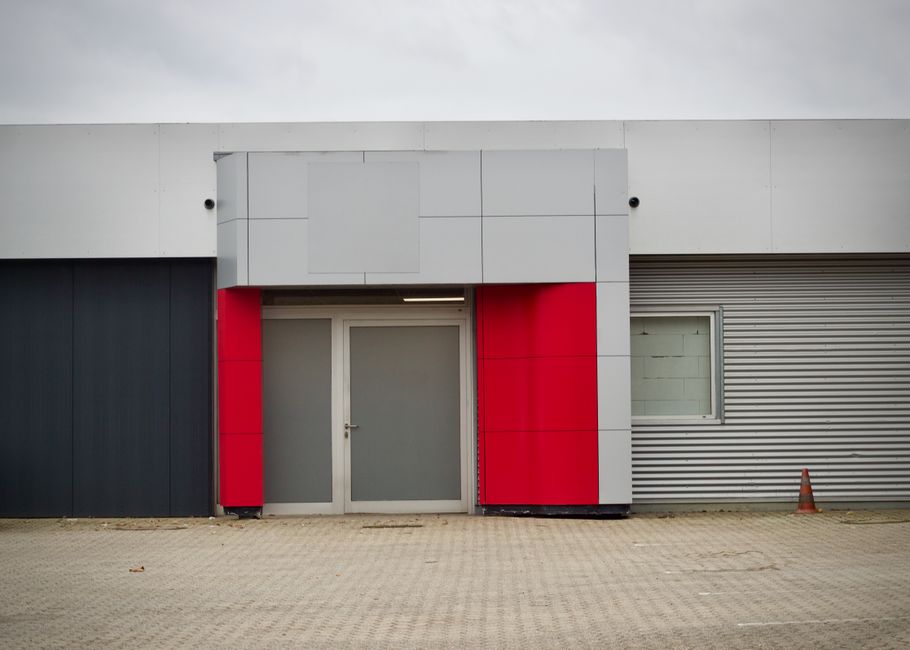

Aluminum Cladding vs ACM Panels: A Technical Comparison

Two materials, one decision

When specifying a metal facade for a US commercial building, one of the most consequential early choices is the panel substrate: solid aluminum or aluminum composite material (ACM). Both are aluminum on the face you see. The difference is what lies beneath that surface, and those differences cascade through fire compliance, structural engineering, long-term cost, and what assembly details you will need to specify.

This article compares the two materials on the criteria that matter most to architects, facade engineers, and project owners in the US market: fire rating and code compliance, structural weight and engineering implications, 10-year maintenance cost expectations, typical installed cost per square foot, and the project types where each material performs best.

Material definitions

Solid aluminum cladding refers to panels made from a single thickness of aluminum sheet or plate, typically between 0.080 in. and 0.125 in. (2 mm to 3 mm), or extruded aluminum profiles with no core. The material is the same alloy - usually 6063-T5 or 3003-H14 - through its full thickness. There is no bonded layer and no combustible interior.

ACM (aluminum composite material) consists of two thin aluminum face sheets, typically 0.020 in. (0.5 mm) each, bonded to a continuous core. The core material defines the fire classification of the panel:

• PE core (polyethylene): Standard ACM. Highly combustible. Banned or heavily restricted in combustible facade assemblies for many building types in the US under IBC.
• FR core (fire-retardant): Aluminum hydroxide fillers are added to the polyethylene resin to reduce flame spread. Still combustible but at a lower rate. Classified as combustible material for IBC purposes.
• A2 / non-combustible core: Mineral-filled core with no polyethylene. Non-combustible per EN classification. Some manufacturers offer US products in this category, though the test methodology differs from the ISO/EN framework.

Total panel thickness ranges from 3 mm to 6 mm. The standard commercial facade thickness is 4 mm.

Fire rating and code compliance

Fire performance is the most important differentiator between solid aluminum and ACM in US commercial construction.

ASTM E84 - surface burning characteristics

ASTM E84 (the Steiner Tunnel test) measures flame spread index (FSI) and smoke development index (SDI) for a material placed in the tunnel. It is a component-level test.

Solid aluminum panels have an FSI of 0 and are classified as non-combustible. ACM panels with PE cores typically produce high FSI values (well above the Class B or Class A thresholds). FR-core ACM panels achieve lower FSI values, often meeting Class A (FSI 0-25) or Class B (FSI 26-75), depending on the formulation.

The critical limitation of ASTM E84 for facade applications is that it tests the material alone, not the full wall assembly. A panel that passes ASTM E84 can still contribute to flame propagation in a multi-story building if the cavity, insulation, or air barrier behind it is combustible.

NFPA 285 - multi-story fire propagation test

NFPA 285 is the test standard that governs multi-story fire propagation in exterior wall assemblies for US building codes. It simulates a fire venting from a window opening and evaluates how the full wall assembly - including panels, insulation, air barriers, and substrate - responds over a two-story height.

The International Building Code (IBC), Section 1407, requires NFPA 285 compliance for metal composite material (MCM) wall assemblies when:

• The building is Type I, II, III, or IV construction, and
• The assembly contains combustible components

Because ACM with PE or FR cores contains combustible material, virtually all ACM facade assemblies on IBC-regulated buildings require a valid NFPA 285 test report. That test report is assembly-specific: the tested combination of panel, attachment subframe, air barrier, insulation type, and substrate must match what is specified on the project. Substituting a different insulation type or air barrier typically voids the test data.

Solid aluminum panels on non-combustible subframes with non-combustible insulation and air barriers do not require NFPA 285 testing for compliance purposes, because the assembly does not contain combustible materials. This simplifies the compliance path considerably.

Practical compliance implications

For a project team specifying ACM:

1. Request the specific NFPA 285 test report for the assembly you intend to build - not a generic panel certification.
2. Confirm the tested assembly matches your design: insulation type and thickness, air/water barrier product, stud or substrate type.
3. Verify that the testing laboratory (typically Intertek or UL) is recognized by the local AHJ (Authority Having Jurisdiction).
4. Document the compliance path in the project specification with specific test report numbers.

For solid aluminum on non-combustible assemblies, the compliance path is shorter: confirm the substrate and insulation are non-combustible, document material classifications, and no NFPA 285 assembly test is required.

Structural weight

Panel weight affects the size of the structural subframe, anchor spacing, and in aggregate the dead load added to the building’s lateral system.

Panel type	Typical weight
Solid aluminum, 0.080 in. (2 mm)	1.1 lb/sq ft
Solid aluminum, 0.125 in. (3 mm)	1.7 lb/sq ft
ACM, 4 mm (standard)	0.9 lb/sq ft
ACM, 6 mm (heavy commercial)	1.1 lb/sq ft

Standard 4 mm ACM is lighter than 3 mm solid aluminum, which was historically an advantage for subframe deflection and anchor loads on large-scale projects. The weight difference narrows significantly when solid aluminum is specified at 2 mm thickness, which is adequate for flat panels in panel-width spans below approximately 4 ft.

For large-area facades with long spans between subframe members, the lighter weight of ACM can allow fewer support points and reduce total dead load on the structure. For smaller panels or projects where fire compliance analysis cost for NFPA 285 documentation exceeds the structural savings, solid aluminum can be the more efficient choice overall.

10-year maintenance expectations

Both materials, when properly finished and installed, require minimal active maintenance. The practical comparison focuses on two areas: coating durability and physical damage vulnerability.

Coating durability

Both solid aluminum and ACM panels are available with PVDF coatings meeting AAMA 2605. At the coating level, there is no meaningful performance difference between the two substrates - the coating behavior is governed by the PVDF chemistry and application process, not by what is beneath it.

Field experience suggests that ACM panels can be more susceptible to edge delamination over time in humid climates, particularly where sealant at panel edges fails and allows moisture to wick between the face sheet and core. Solid aluminum panels have no bond line and no delamination mode.

Physical damage and repairability

ACM panels are easier to form into curved shapes on site and can be cold-bent to modest radii. However, once the face sheet is dented or creased, repair options are limited. The internal bond makes it difficult to push out a dent from behind, and full panel replacement is typically necessary.

Solid aluminum panels can sometimes be re-formed or planished if a dent is shallow, though replacement is the standard approach for commercially visible damage. Single-panel replacement in either system is typically straightforward if the subframe and attachment system allows individual panel removal.

A 10-year total cost of ownership model for a 50,000 sq ft facade would typically show cleaning costs (approximately $0.10-0.25/sq ft per wash) as the dominant maintenance line item for either material, with panel replacement costs driven more by physical abuse and accessory sealant re-caulking than by material-inherent degradation.

Installed cost per square foot

Material and installation costs vary significantly by region, project scale, finish specification, and subframe complexity. The ranges below are indicative for US commercial projects and should not replace current local bids.

Component	Solid aluminum panels	ACM (FR core) panels
Panel material	$8 - $18 /sq ft	$5 - $12 /sq ft
NFPA 285 test documentation	Not required (non-comb. assembly)	$5,000 - $25,000 per assembly type
Subframe and installation	$12 - $25 /sq ft	$12 - $25 /sq ft
Typical installed total	$20 - $43 /sq ft	$17 - $37 /sq ft

On a large project with a single ACM assembly type, the NFPA 285 documentation cost is amortized across many square feet. On a small project or a project requiring multiple tested assemblies, the cost can swing the comparison toward solid aluminum.

The installed cost advantage of ACM narrows significantly when:

• The project is under approximately 15,000 sq ft of facade
• Multiple assembly types are required (different insulation specs or substrate types in different zones)
• The AHJ requires additional documentation beyond the NFPA 285 test report
• The project schedule is compressed and there is no time to source compliant test reports before the specification deadline

Recommended applications

When solid aluminum is preferred

• Buildings where the IBC non-combustibility requirement would require full mineral-wool or non-combustible insulation anyway (reducing ACM’s cost advantage further)
• Projects above 75 ft in height where NFPA 285 documentation complexity is high
• Marine and coastal environments where edge delamination risk in ACM is elevated
• Projects with limited time for NFPA 285 compliance documentation
• Institutional and government buildings where non-combustible material classifications simplify Authority Having Jurisdiction review

When ACM is preferred

• Projects where curved panels or compound-formed shapes are a design objective
• Large-scale low-rise commercial projects (retail, warehouse conversion, campus buildings) where FR or A2-core panels can be specified and a single tested assembly covers the whole facade
• Projects with budget pressure and a facade consultant available to manage NFPA 285 documentation
• Retrofit and renovation projects on existing structures where panel weight reduction reduces structural upgrade scope

A note on PE-core ACM

PE-core ACM panels should not be specified for new commercial construction in the US. The fire performance risk is well-documented in multiple high-profile failures internationally, and the IBC compliance path for PE-core ACM in combustible assemblies on most building types is either unavailable or involves extraordinary documentation burden. FR-core or A2-core should be the minimum specification for any exterior application.

Summary comparison

Criterion	Solid aluminum	ACM (FR core)
Fire classification	Non-combustible	Combustible (reduced)
NFPA 285 required	No (non-comb. assembly)	Yes
Typical panel weight	1.1 - 1.7 lb/sq ft	0.9 - 1.1 lb/sq ft
Panel material cost	$8 - $18 /sq ft	$5 - $12 /sq ft
Edge delamination risk	None	Low to moderate
Curved panel forming	Limited (requires brake or roll forming)	Good (cold-formable)
20-year PVDF coating	Available (AAMA 2605)	Available (AAMA 2605)

For more on the broader context of facade system selection, see What Are Aluminum Facades?. For the technical treatment of ventilated cavity systems that apply to both materials, see Ventilated Facade Systems: A Complete Guide.
